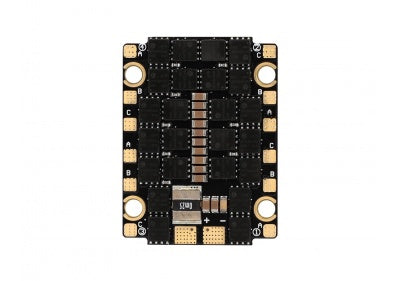

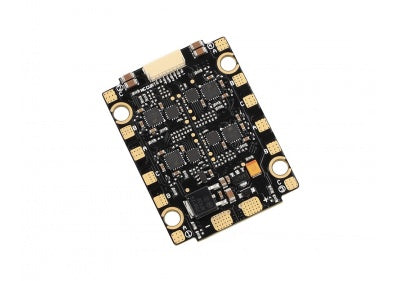

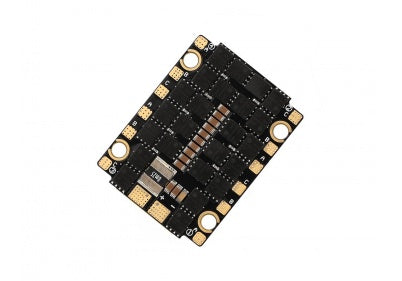

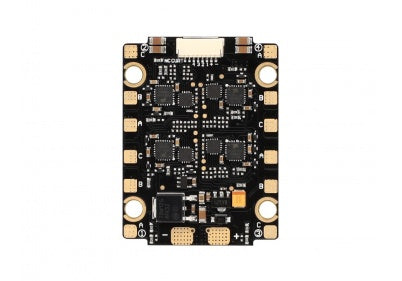

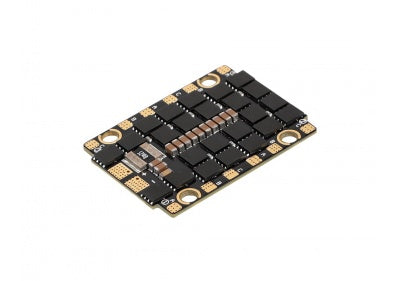

T-MOTOR V45A Lite 4in1 - 45A 6S Racing & Freestyle ESC

Reliable Power, Smooth Control: The New Standard for 6S Systems

The T-Motor V45A 4in1 is a professional power unit designed to power the most popular 5-inch and 7-inch drone setups. Offering wide battery support from 3S to 6S (25.2V), this ESC combines T-Motor's legendary stability in a compact structure. Thanks to its advanced MOSFET arrangement, it efficiently transfers high current demands during sudden throttle changes (punch-outs) to the motors without converting them into heat.

V45A 4in1 Key Features

• 45A Continuous Current Capacity: With 45A (55A burst) current handling capacity per channel, it drives even the most powerful brushless motors effortlessly.

• BLHeli_S Software Support: Comes pre-installed with BLHeli_S. It supports DShot300/600 protocols, providing high-speed and lag-free communication between the motor and flight controller.

• Optimized Heatsink: The metal heatsink plate on top rapidly dissipates heat from the MOSFETs. This feature prevents thermal throttling during aggressive flights and extends the ESC's lifespan.

• Advanced Electrical Filtering: Built-in high-quality capacitors suppress electrical noise from the motors. This results in a cleaner image for your FPV video system and more stable gyro performance for your flight controller.

• Easy Installation and Large Pads: Standard 30.5x30.5mm mounting holes and large solder pads allow for a clean and reliable installation.

Technical Specifications Table

Usage Recommendation:

This ESC is perfectly compatible with T-Motor Velox, Pacer, or F-Series motors of size 2207/2306. For 6S setups, it is highly recommended to solder the external capacitor (Low ESR Capacitor) included in the box to the power input for system health.
