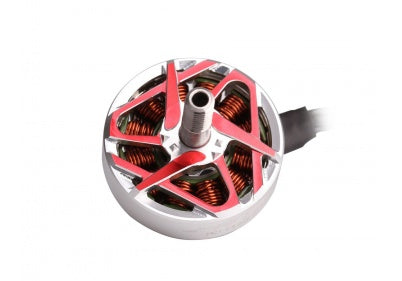

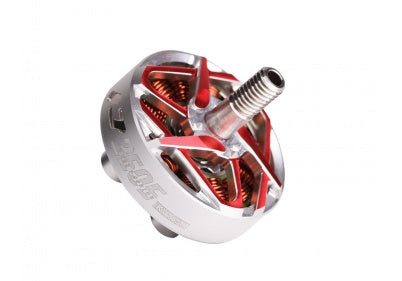

T-MOTOR P2505 - 1850KV Freestyle & Racing Performance Motor

New Dimension of Power and Control: 2505 Hybrid Technology

The T-Motor P2505 1850KV goes beyond standard motor sizes, combining both agility and raw power in a single body. The 1850KV value is optimized especially for 6S (22.2V) battery setups, offering aggressive thrust with a linear throttle curve. Its wide 25mm diameter stator structure generates immense torque when spinning 5-inch and 5.1-inch propellers, ensuring the drone stays "on rails" during sudden maneuvers.

P2505 1850KV Key Features

• Extended 2505 Stator Structure: Offers a wider magnetic field compared to classic 22xx or 23xx motors. This width ensures more stable propeller rotation and minimizes "prop wash" effect.

• Aerospace Grade 7075 Aluminum: The ultra-durable aluminum alloy used in the body construction protects the motor against the harshest crashes and impacts without compromising on lightness.

• EZO Bearing Comfort: Thanks to the standard Japanese EZO bearings, mechanical noise and vibrations are minimized. This feature helps you capture crystal-clear and stable video recordings.

• Aggressive Cooling Channels: Special air channels on the top of the rotor direct airflow directly to the windings, ensuring the motor stays cool even during the most intense use.

• Precise Throttle Response: T-Motor's signature "silky smoothness" combined with high torque in this motor instantly translates every pilot's movement to the propeller.

Technical Specifications Table

Usage Recommendation:

For best performance, it is recommended to use aggressive propellers such as 5.1x4.3x3 or 5.1x4.6x3 (e.g., T-Motor T5143S or T5146). To control this motor, pairing it with a high-quality 45A-60A ESC (preferably T-Motor Velox or F-Series) ensures full compatibility.
