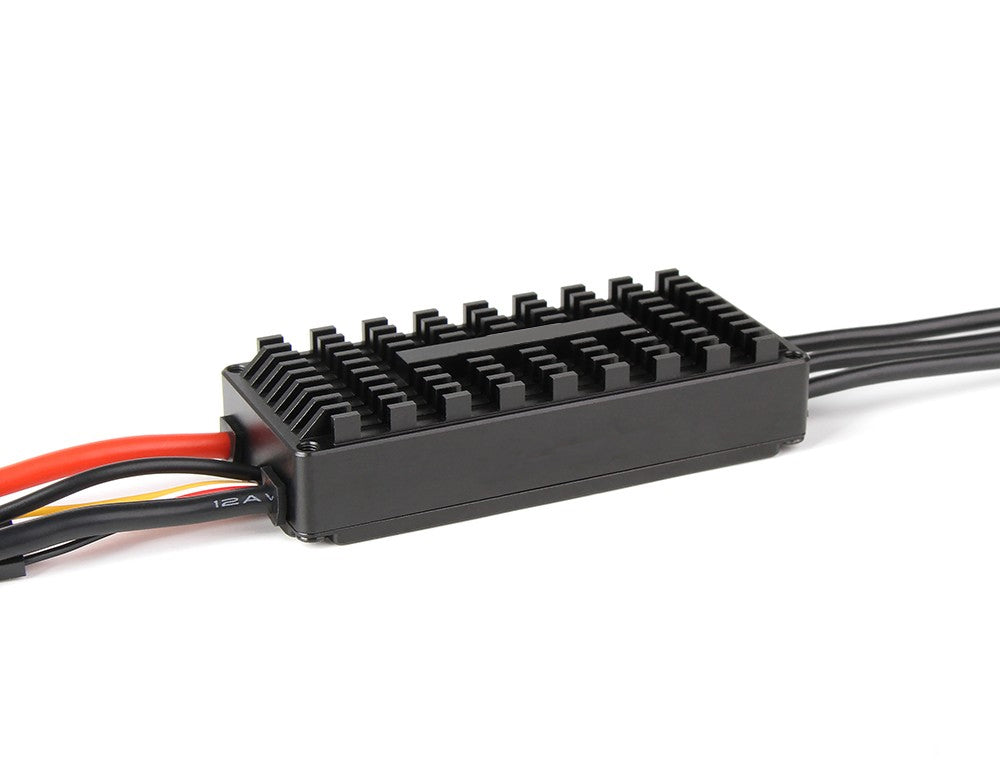

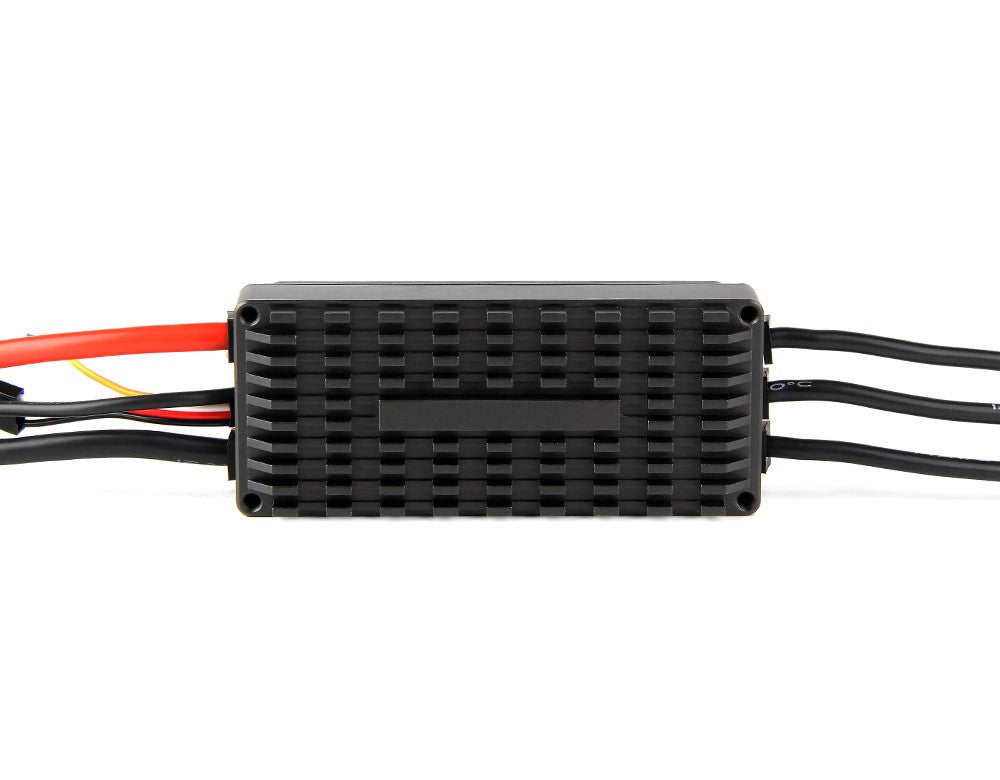

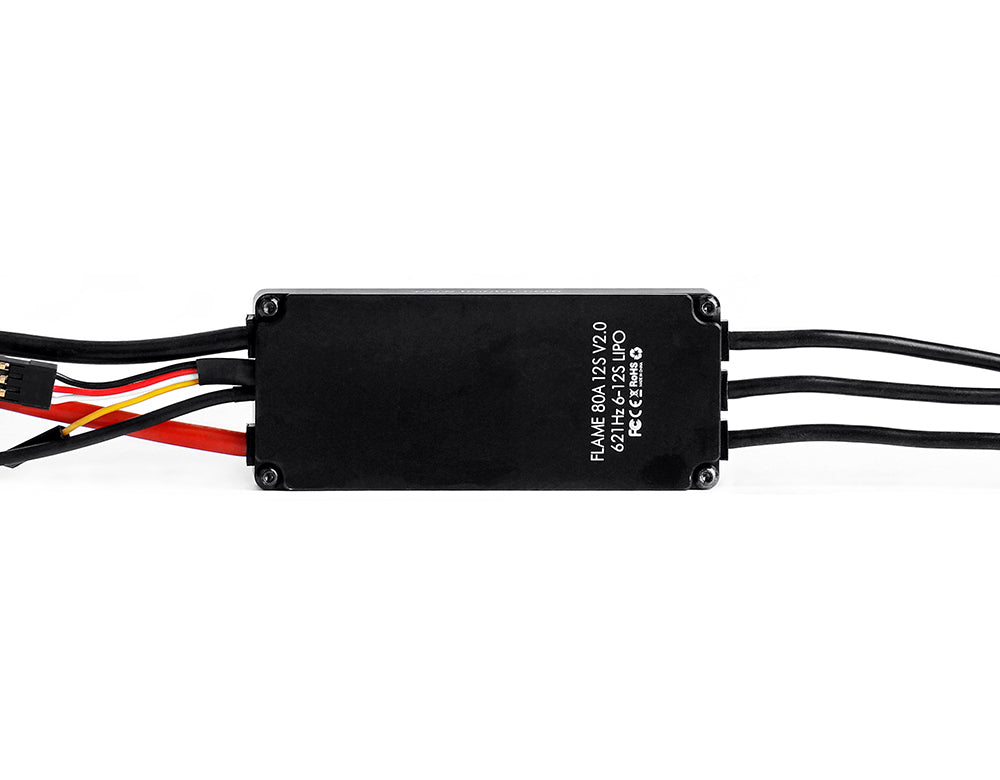

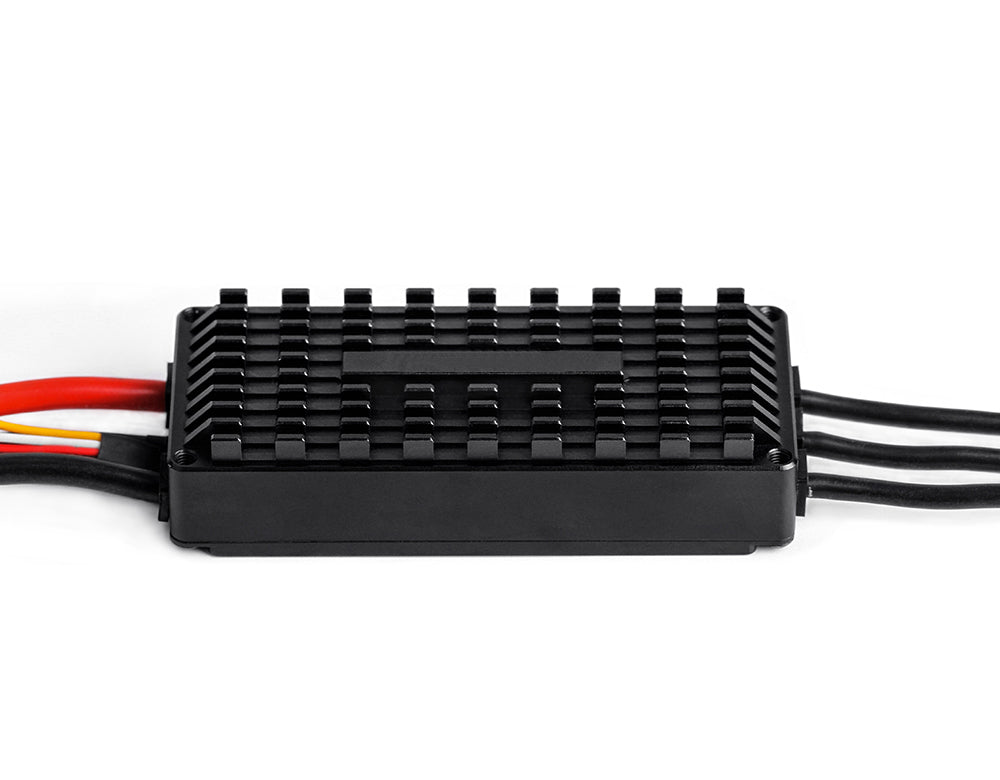

T-MOTOR FLAME 80A 12S V2.0 Multi-Rotor UAVs ESC

Unwavering Stability in Heavy-Lift Operations: 12S Power Management

The T-Motor FLAME 80A V2.0 is specifically designed for massive multi-rotors used in agricultural spraying, professional cinematography, and cargo transport. Capable of operating across a wide voltage range from 6S to 12S (50.4V), this ESC delivers the high current required by the motor with minimal heat loss. Its fully enclosed metal casing not only prevents electromagnetic interference but also provides excellent heat dissipation in challenging outdoor environments.

FLAME 80A V2.0 Key Features

• IP55 Protection Rating: Its robust design, resistant to dust, moisture, and agricultural spray splashes, allows for reliable use in all weather conditions and operational sites.

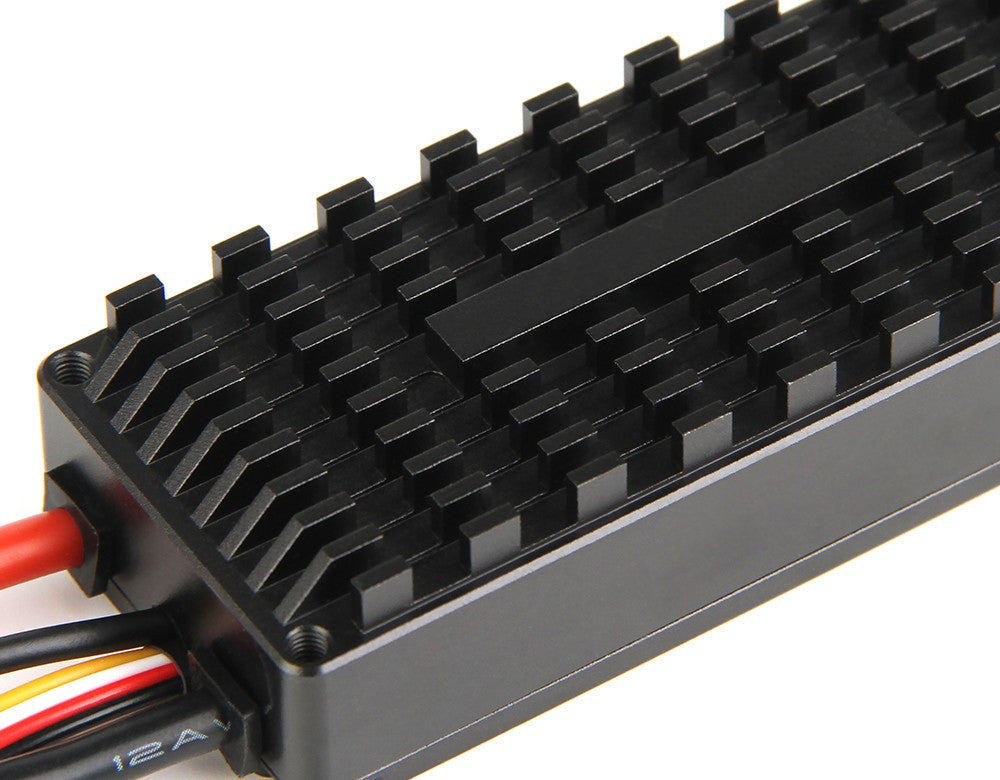

• Advanced Heat Dissipation: The high-quality aluminum alloy casing accelerates the cooling of internal components, preventing performance loss (thermal throttling) during prolonged flights.



• Fast Throttle Response and Stability: Thanks to its special autopilot signal processing algorithm, it adjusts motor speed with millisecond precision. This enhances the hovering and maneuverability of heavy-lift drones.

• Multiple Protection Layers: Smart safety systems such as low voltage protection, over-temperature protection, signal loss protection, and motor blockage protection safeguard both the ESC and your motor.



• Excellent Electromagnetic Compatibility (EMC): The optimized circuit design in the V2.0 version minimizes electrical noise on GPS and telemetry systems, enhancing navigation safety.

Technical Specifications Table

Usage Recommendation:

For maximum efficiency and safety, it is recommended to pair this ESC with T-Motor U8, U10, U11, P60 or P80 series brushless motors. As this ESC has an "OPTO" design, an external 5V/12V BEC or Power Module is required to power the flight controller.
