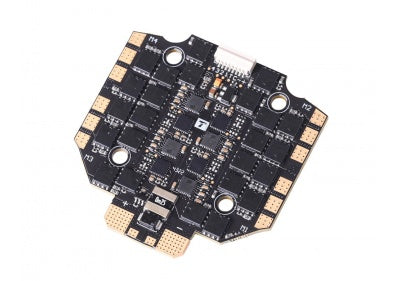

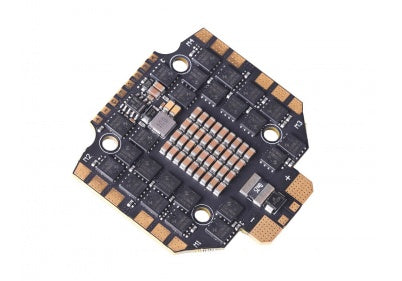

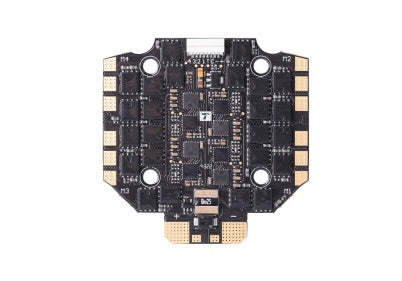

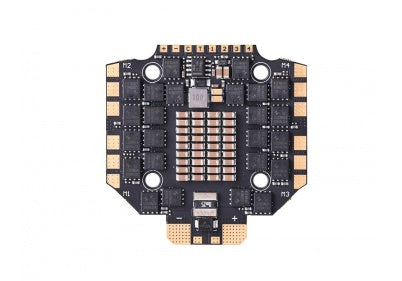

T-MOTOR F80A 8S 4in1 - 80A High-Performance Racing & Cinematic ESC

Unlimited Power, Maximum Efficiency: 8S LiPo and 80A Capacity

The T-Motor F80A 8S 4in1 is designed to power the most aggressive racing motors and heavy-lift cinematic drones (Cinelifters). With a continuous current handling capacity of 80 Amps per channel, this ESC can manage a colossal total power of 320 Amps. Thanks to its 8S (33.6V) voltage support, it allows you to utilize the low current and high torque advantages of high-voltage systems most efficiently.

F80A 8S 4in1 Key Features

• 8S LiPo Compatibility: Offers broad battery support from 3S to 8S. In 8S setups, it reduces motor heating while maximizing flight time and instantaneous power (punch-out) capability.

• BLHeli_32 32-Bit Processor: Equipped with the latest 32-bit microprocessor architecture. Supports Bidirectional DShot, PWM frequency adjustment, and real-time telemetry data (current, voltage, RPM).

• Industrial-Grade Cooling: The fully enclosed CNC aluminum heatsink not only protects the MOSFETs but also rapidly dissipates heat, maintaining stable performance even in the hottest weather.

• Advanced EMI Filtering: Thanks to its built-in high-quality capacitor array and optimized PCB layers, it suppresses electrical noise. This improves FPV image quality and the gyro stability of the flight controller.

• High Current Protection: Intelligent protection algorithms safeguard both the ESC and the rest of the system against sudden voltage spikes and motor lock-ups.

Technical Specifications Table

Usage Recommendation:

This ESC is ideal for 7-inch, 8-inch, or 10-inch drone setups (Cinelifter/Long Range), especially with T-Motor F90, F100, or Pacer series large motors. For 8S systems, make sure to solder the high-capacity capacitor included in the box to the power input.
