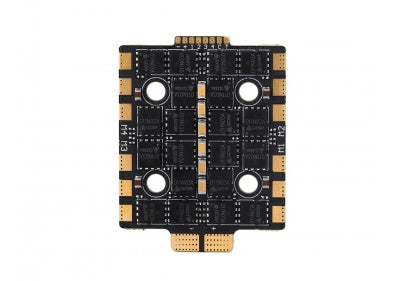

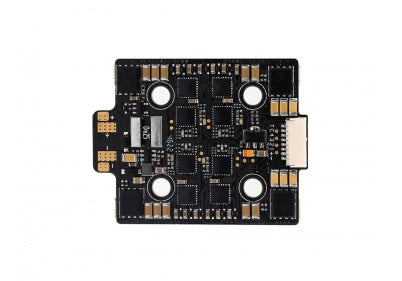

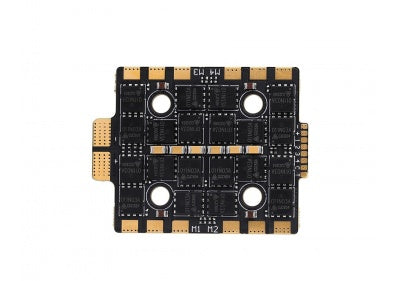

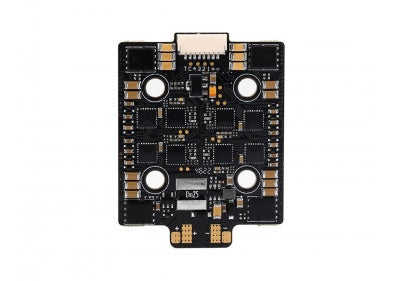

T-MOTOR F60A 8S 4-in-1 - 20x20 High-Performance Mini Racing ESC

Small Size, Immense Power: The 8S-Supported Mini Beast

The T-Motor F60A 8S 4in1 sets a new standard in the mini drone world with its 60 Amp continuous current capacity, despite its compact 20x20mm mounting structure. Thanks to 8S (33.6V) voltage support, it offers incredible torque and response speed in high-voltage setups. It is designed for professional pilots who want to drive even the most aggressive motors at full capacity without sacrificing agility on the race tracks.

F60A 8S 4in1 Key Features

• 8S LiPo Compatibility: With rare 8S support in the mini class, it allows you to achieve higher efficiency and power by drawing lower current.



• BLHeli_32 Software Support: Equipped with the latest 32-bit processor architecture. This supports advanced features such as PWM frequency adjustment, bidirectional DShot, and real-time ESC telemetry.



• Advanced Cooling Architecture: The integrated CNC cut aluminum heat sink plate rapidly dissipates heat generated under high current, eliminating the risk of "thermal throttling."

• Low Noise Filtering: The built-in high-quality capacitor array minimizes electrical noise. This ensures a much cleaner power supply to the flight controller and FPV camera system.

• Durable MOSFET Structure: T-Motor's meticulously selected industrial-grade MOSFETs maintain reliability during sudden throttle inputs and aggressive maneuvers.

Technical Specifications Table

Usage Recommendation:

This ESC forms an excellent "stack" with flight controllers that have a 20x20mm mounting pattern, such as the T-Motor F7 Mini or Pacer F7 Mini. For 8S setups, it is recommended to solder the high-capacity capacitor (low ESR capacitor) included in the box to the power input.
