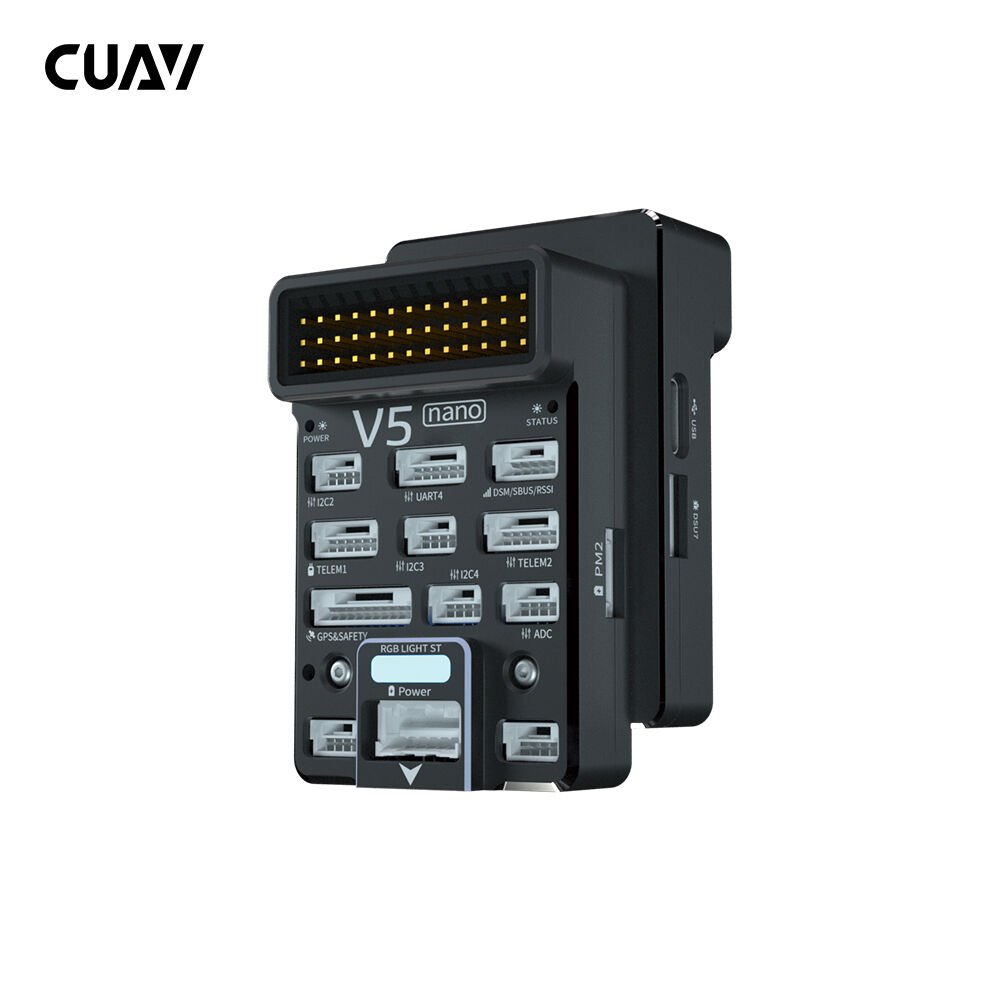

CUAV V5 Nano Drone Controller PX4 APM
Kategori
Marka
12.000,00 TL
1.626,47 TL den başlayan taksitlerle!
Ürün Özellikleri
| Processor | STM32F427 |
| sensor | |
| Accelerometer | ICM-20608 |
| Gyro | ICM-20608 |
| Compass | HMC5983 |
| Barometer | MS5611 |
| Interface | |
| Mavlink UART | 2 |
| GPS UART | 2 |
| DEBUG UART | 1 |
| Remote control signal input protocol | PPM/SBUS/DSM/DSM2 |
| RSSI input | PWM or 3.3 analog voltage |
| I2C | 1 |
| CAN | 1 |
| ADC input | 6.6V X1 |
| PWM output | 6 PWM IO |
| Support model | |
| Copter/Plane/Helicopter/VTOL/unmanned vehicle/Rover, etc. | |
| Working environment and physical parameters | |
| Operating Voltage | 4.5 ~ 5.5 V |
| USB Input voltage | 5.0 V +- 0.25v |
| Servo input voltage | 4.8~5.4V |
| Operating temperature | -20 ~ 60°c |
| size&weight | |
| Size | 57*34*17mm |
| Weight | 40g |
Bu ürüne ilk yorumu siz yapın!
