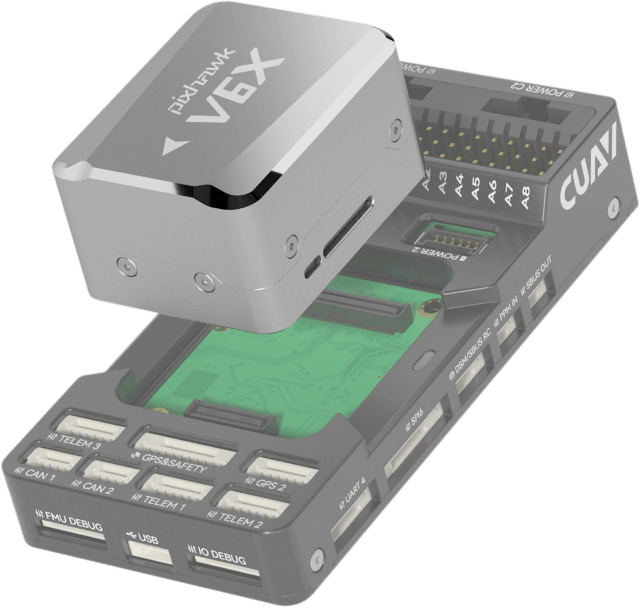

Pixhawk V6X Autopilot
Kategori
29.999,00 TL
4.066,03 TL den başlayan taksitlerle!
Ana Özellikler
| Hardware Standard | Pixhawk FMUv6x Standard DS-010 Pixhawk AutoPilot Bus Standard DS-012 Pixhawk AutoPilot V6X Standard |
| Processor | STM32H753IIK6 32-bit Arm® Cortex®-M7 480MHz MCUs, 2MB Flash,1MB RAM |
| Coprocessor | STM32F10X |
| Accelerometer&Gyroscope | ICM42688-P ICM-20649 BMI088 |
| Compass | RM3100 |
| Barometer | 2×ICP-20100 |
| Interfaces | |
|---|---|
| PWM I/O | 16 |
| Power | 4 2 for UAVCAN，2 for SMBUS（I2C) |
| GPS | 2 1 GPS port with I2C and safety switch (GPS1) 1 interface with I2C and GPS (GPS2) |
| TELEPRINTER | 3 |
| LIFE | 2 |
| PPM RC | 1, Dedicated R/C input for PPM |
| SBUS/DSM/RSSI | 1 Dedicated R/C input for Spektrum / DSM and S.Bus with analog / PWM RSSI input |
| SBUS outs | 1 |
| FMU Debug | 1 |
| IO Debug | 1 |
| Ethernet | 1 |
| SPI EXTERNAL1 | 1 (SPI6 interface，for expanding external sensors) |
| NAME | 1 AD3.3/ADC6.6 |
| UART4 | 1 |
| USB | 2 1 for Type C 1 for GH interface USB |
| TF Slot | 1 |
| Physical characteristics | |
| Operating voltage | 4.75~5.45V |
| Servo input voltage | 0~9.9V |
| Operating temperature | -20~85 |
| You | 45×90×29.2mm |
| Weight | 99g Core：43g Baseboard:56g |
