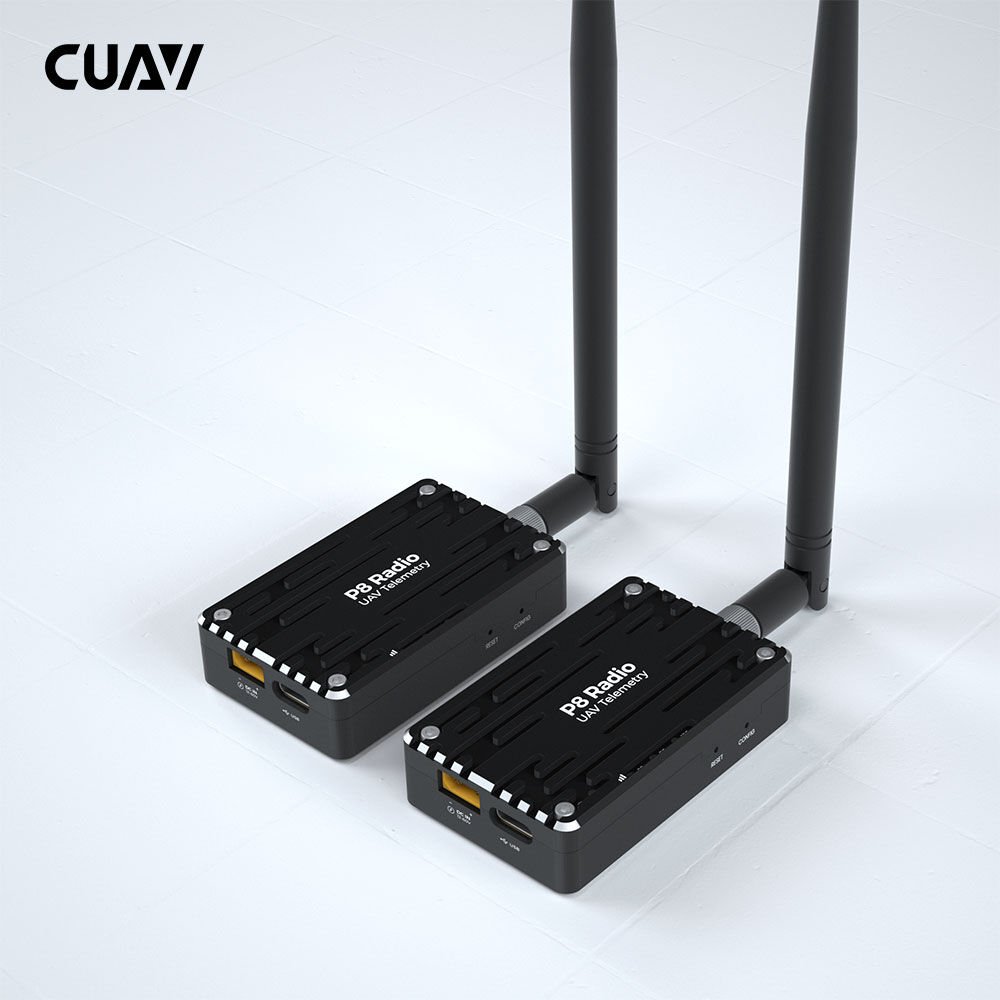

CUAV P8 Radio Drone Telemetry | High power High speed Ultra-vision UAV Data Link Communication Module
Kategori
16.000,00 TL
2.168,62 TL den başlayan taksitlerle!
P8 Modülü 840-845MHz Frekans Bandı İletişim Bağlantısı
- 40km Ragne
- 345kbps Bağlantı Hızı
- 840-845MHz Frekans Bandı
- Noktadan Noktaya ve Röle İletişim Modları
- Entegre BEC, 3-12S Pil Girişini Destekler
Ürün Özellikleri
| Frequency Band | 840-845MHz |
| Spreading Method | Frequency Hopping/Fixed Frequency, GMSK, 2GFSK, 4GFSK, QPSK |
| Forward Error Correction | Hamming, BCH, Golay, Reed-Solomon, Viterbi |
| Error Detection | 32 bits of CRC, ARQ |
| Range | 40km (The transmission distance is different under different environments/configurations, please refer to actual use) |
| Sensitivity |
-109dBM@115.2kbps -108dBm@172.8kbps -106dBm@230.4kbps |
| Transit power | 100mw~1000mw(20~30dBm）； default：1000mW |
| Antenna gain | 3DBi |
| Serial type | 3.3V CMOS TTL |
| Lina Rate | 345kbps Max |
| Baud Rate | 300bps to 230kbps(57600) |
| Operating Modes | Point-to-Point,Repeat Mode |
| Input voltage | 12V-60V |
| Input current | >2.5A |
| Power consumption |
sleep< 1mA ; Idle< 20mA RX :45~98mA TX(peak):2A |
| Interface | Antenna: SMA inner needle Serial：GHR-06V-S USB: TYPE-C Power: XT30PW-M |
| Operation Temperature | -40°C~85°C |
| Weight | P8 module;:55g Antenna:31g Total: 86g |
| Size | 65mm×40mm×16.5mm |
