High Torque and Smooth Power for Industrial Applications

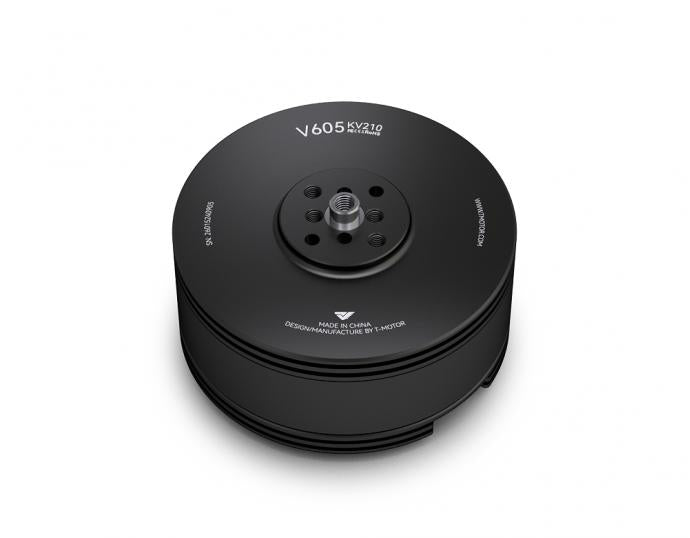

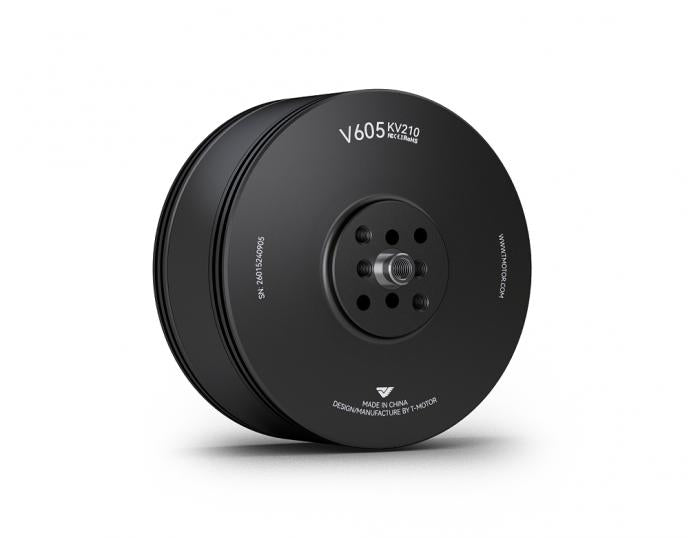

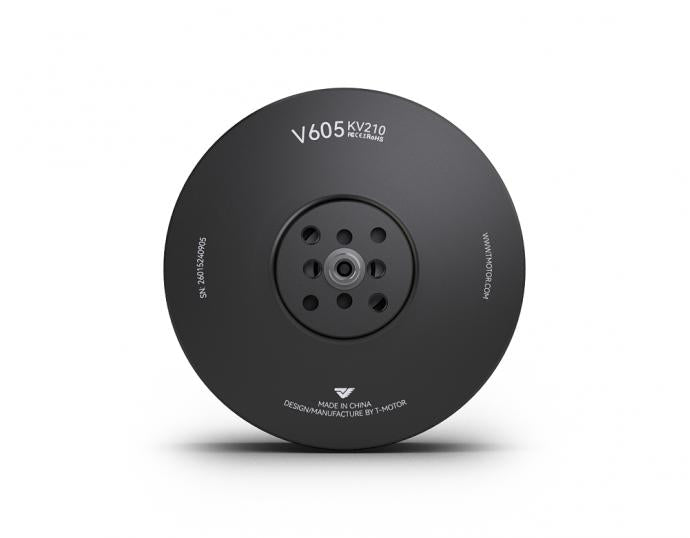

The T-Motor V605 210KV is an industrial motor optimized for professional UAV (Unmanned Aerial Vehicle) systems, standing out for its durability. Its 210KV rating is specifically designed to spin large propellers (20"-22") at the most efficient RPM range, especially with 6S (22.2V) battery systems. From agricultural spraying to heavy-lift cargo transport, T-Motor quality delivers in every challenging task.
V605 210KV Highlighted Features
-
Industrial-Grade Durability: Thanks to its dust and moisture-resistant internal structure, it operates without performance loss in open areas and varying weather conditions.
-

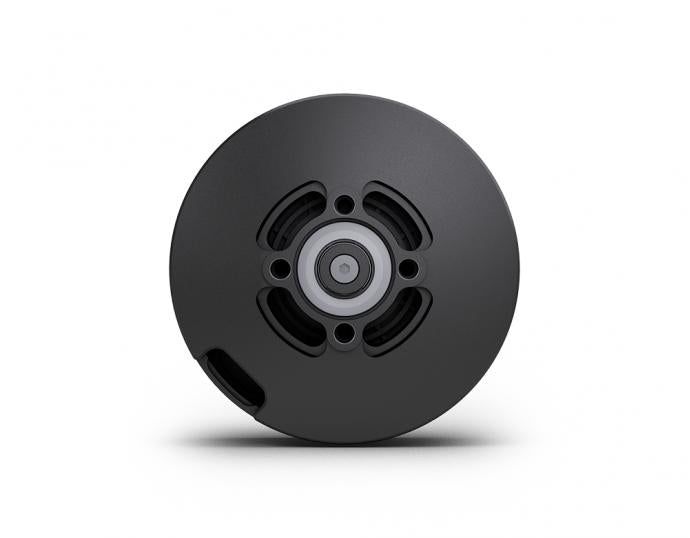

Advanced Cooling Architecture: Large ventilation channels on the top and bottom of the motor maximize air circulation, keeping the windings cool even during the most intense use.
-
Japanese EZO Bearing Technology: Equipped with world-renowned EZO bearings, the V605 minimizes friction, extending motor life and reducing energy loss.
-
High Torque 605 Stator: The wide stator structure ensures the drone maintains excellent stability even under heavy loads and responds safely to sudden maneuvers.
-
Precise Balancing: Thanks to factory-calibrated dynamic balancing, mechanical noise and vibration produced by the motor are minimized, allowing the flight controller to process sensor data more clearly.
Technical Specifications Table
| Feature | Detail |
| KV Value | 210KV |
| Configuration | 18N24P |
| Motor Dimensions | Φ69.2 x 35.5 mm |
| Stator Diameter / Height | 60 mm / 5 mm |
| Weight (Including Cable) | ~250g |
| Supported Battery (LiPo) | 6S |
| Max Power (180s) | ~800W+ |
| Max Current (180s) | ~35A |
| Idle Current (10V) | 0.8A |
Usage Recommendation:
For maximum efficiency and lifting capacity, it is recommended to use 20x6.6, 21x7, or 22x6.6 carbon fiber propellers. To control this motor, an ESC of at least 40A-60A (preferably T-Motor Flame or Air series) is recommended.
