The Pinnacle of Speed and Reliability: Custom Design for Fixed-Wing UAVs

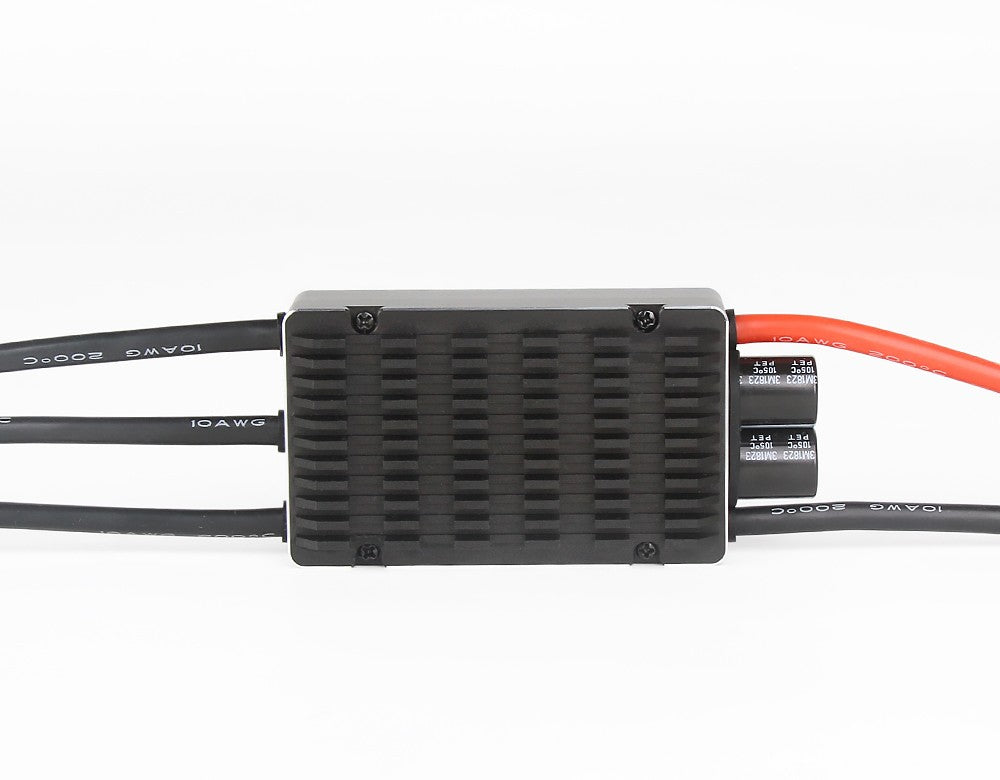

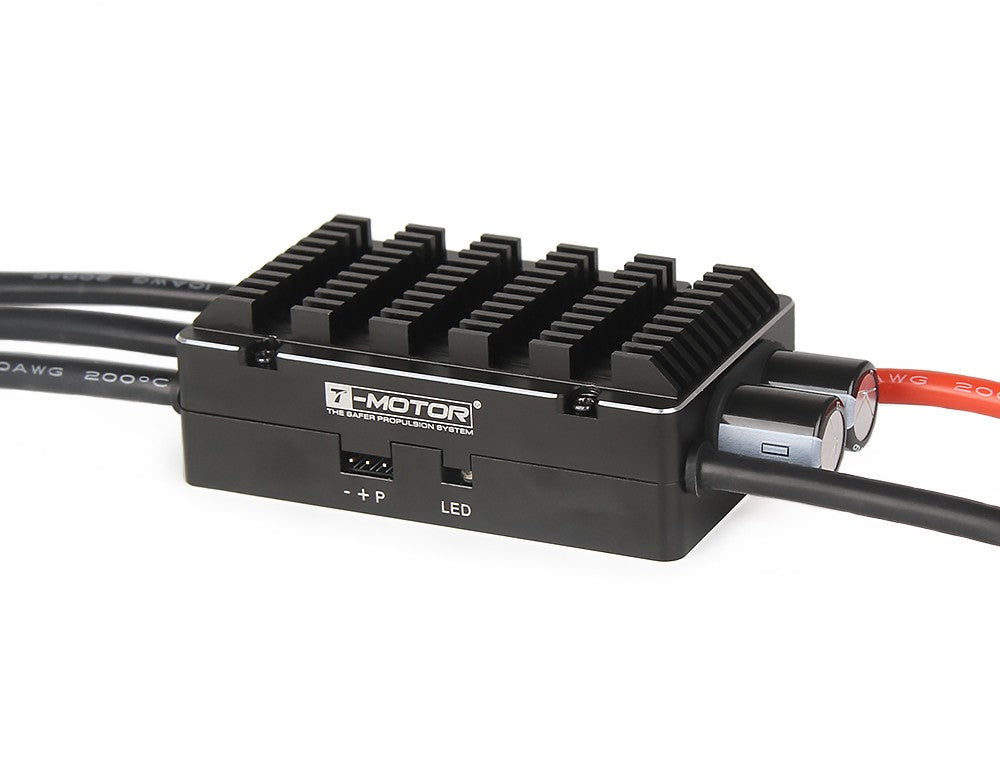

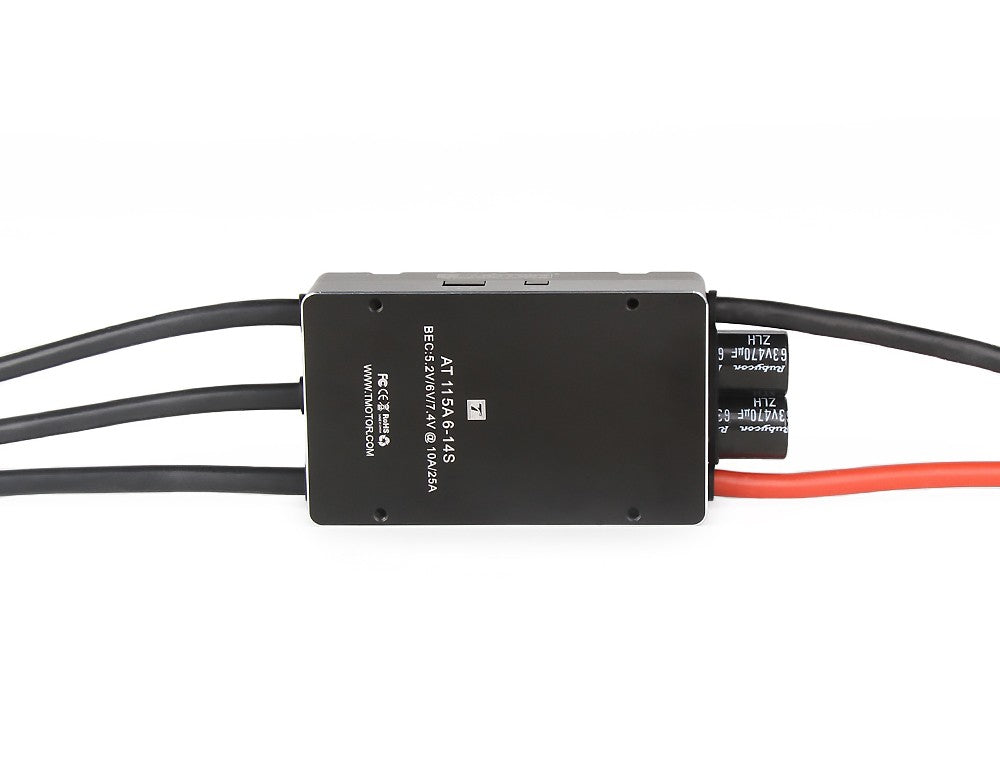

The T-Motor AT115A is manufactured for professional aviation projects requiring high voltage and high current. Offering broad battery support from 6S to 14S (58.8V), this ESC is optimized to meet the "instant power" demands of large-scale UAVs and high-performance fixed-wing aircraft. Its "Fast Throttle Response" architecture maximizes flight safety and control precision by converting even the slightest throttle input into immediate thrust without delay.
AT115A ESC Key Features
-
Ultra-Fast Throttle Response: Features an optimized software algorithm for stall recovery and sudden climb maneuvers, which are critical in fixed-wing platforms.
-
14S Voltage Support: Fully compatible with new-generation high-voltage battery systems (58.8V), increasing overall system efficiency and reducing current load on cables.
-

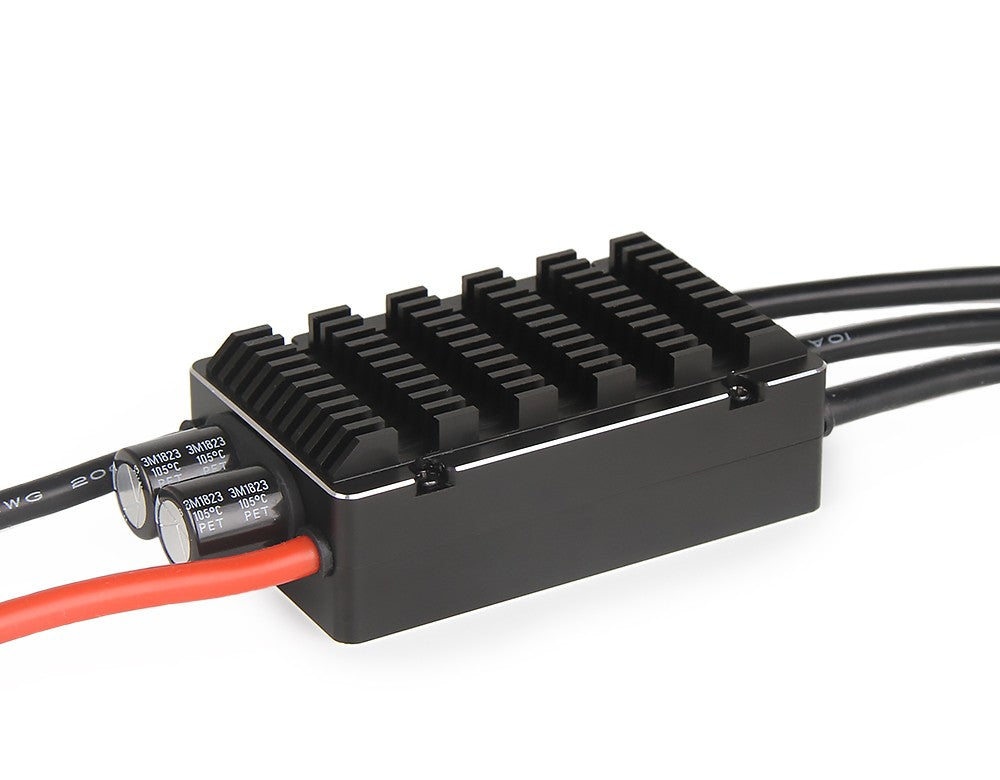

Advanced Thermal Management: With its large-surface-area aluminum heatsink body and finned structure that maximizes airflow, it remains cool even during prolonged high-load flights.
-
Excellent Linearity: The relationship between throttle level and motor RPM is extremely linear. This is vital for maintaining constant speed and precise landing maneuvers in autonomous flights (ArduPilot/PX4).
-
Multiple Protection Systems: Protects both the ESC and your valuable motor from all kinds of risks with overvoltage, undervoltage, overcurrent, temperature protection, and signal loss protection.
Technical Specifications Table
| Feature | Detail |
| Continuous Current | 115A |
| Burst Current (10s) | 130A |
| Input Voltage | 6S - 14S LiPo (22.2V - 58.8V) |
| BEC Output | None (OPTO - Maximum Signal Isolation) |
| Weight | ~170g (with cables) |
| Dimensions | 89.3 x 45.4 x 20.2 mm |
| Application Area | Fixed-Wing, VTOL, Large Aerobatic Aircraft |
Why Choose the AT Series?
In fixed-wing aircraft, unlike multirotors, it is not critical for the propeller to rotate continuously, but for its RPM to be adjusted instantly according to speed. The AT115A, thanks to T-Motor's patented driver technology, maintains the highest level of motor synchronization and ensures the motor does not "stutter" (desync) during high-torque, sudden accelerations.
