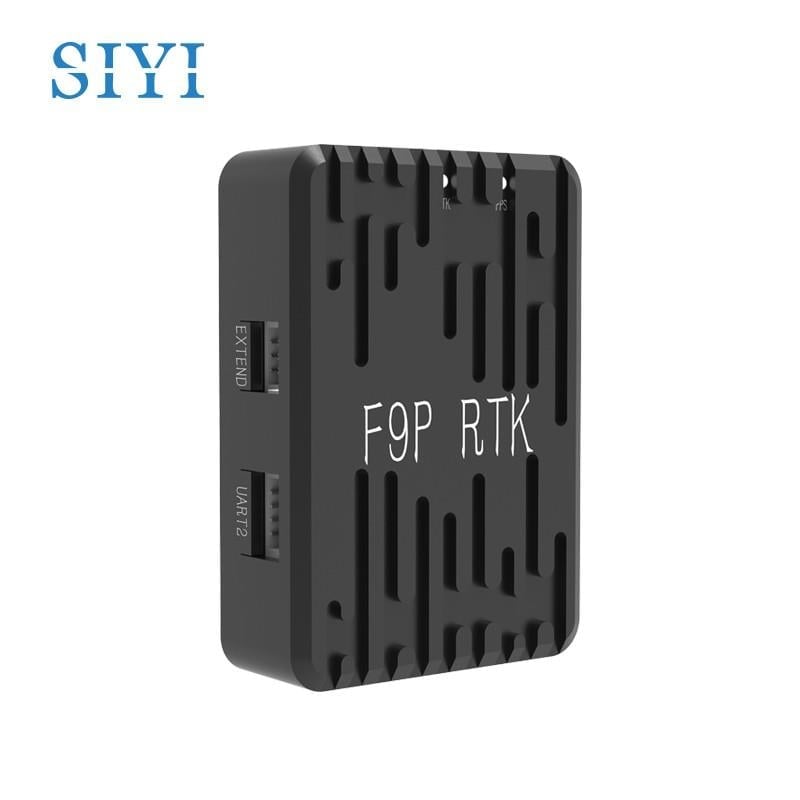

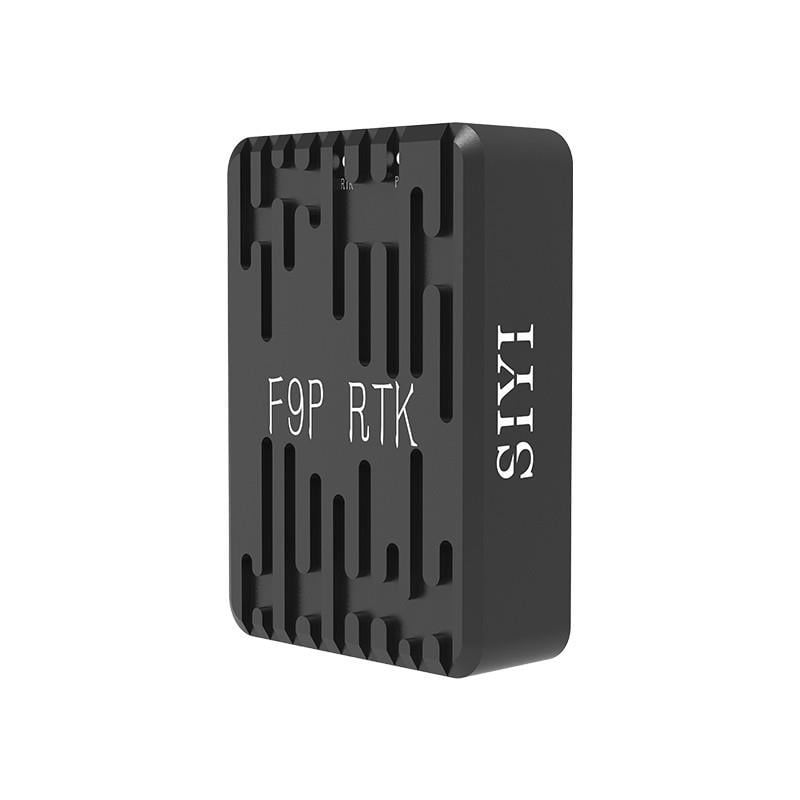

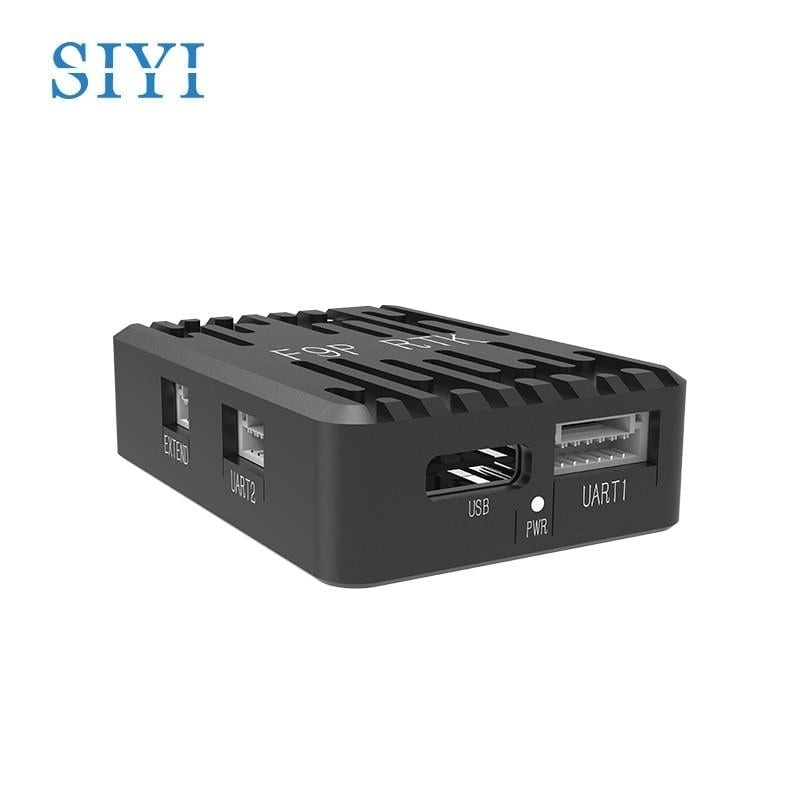

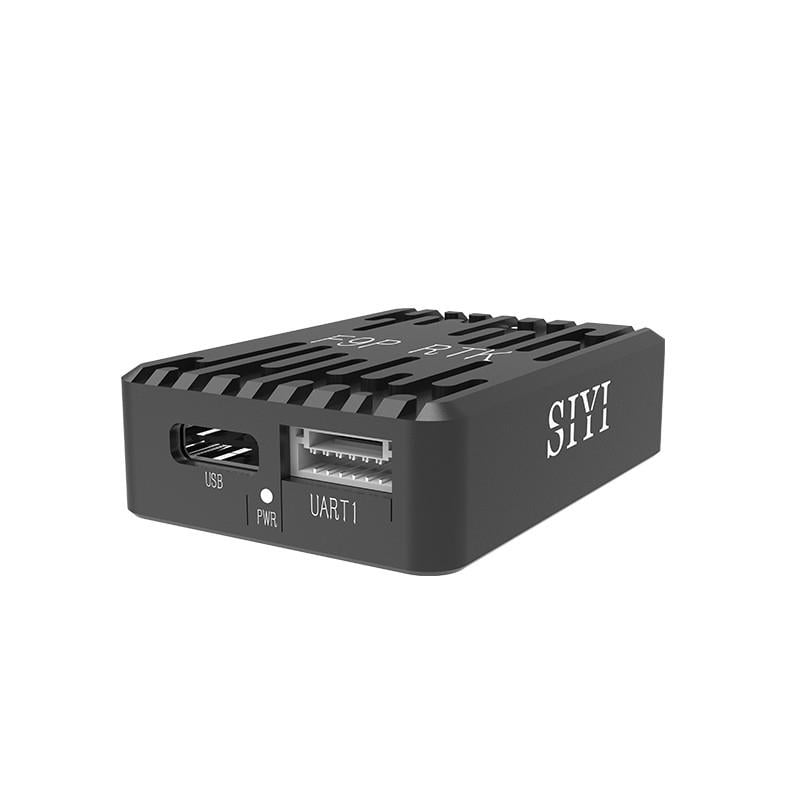

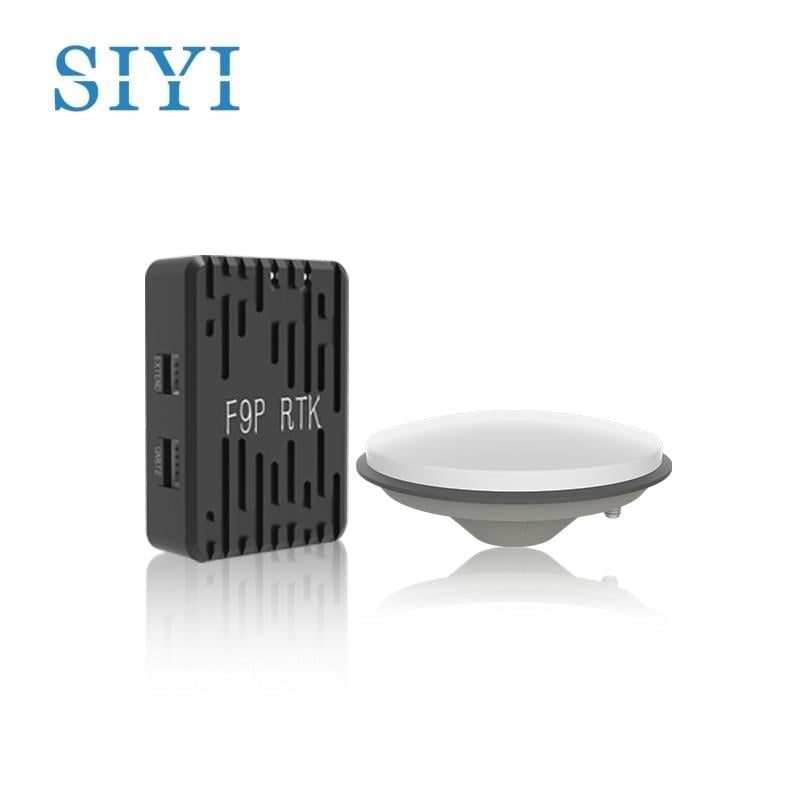

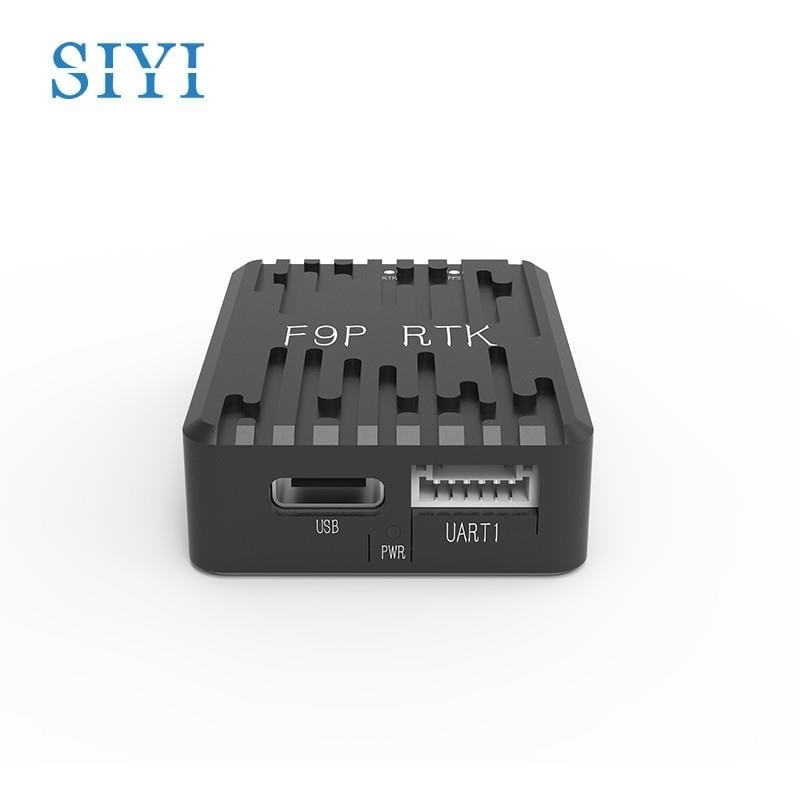

SIYI F9P RTK - Centimeter Level High Performance GNSS Module

Eliminate Positioning Errors: RTK Technology

The SIYI F9P RTK is the "ultimate" navigation unit developed for mapping, autonomous spraying, and precision landing/takeoff operations. Featuring the industry-standard U-blox ZED-F9P chipset, this module achieves 1-2 cm horizontal positioning accuracy when used with an RTK base station. Thanks to multi-frequency (L1/L2) support, it acquires an RTK Fixed solution in seconds, even in challenging terrains with buildings or obstacles.

SIYI F9P RTK Key Features

• U-blox ZED-F9P Dual-Frequency Chip: Simultaneously tracks L1 and L2 bands, filtering out ionospheric errors. This provides much faster and more stable positioning compared to standard single-frequency GPS modules.

• Centimeter-Level Accuracy: Offers 1cm + 1ppm horizontal accuracy in RTK Fixed mode. Minimizes the need for ground control points (GCPs) in photogrammetry missions, speeding up your workflow.

• Simultaneous Quad-Satellite Tracking: Uses GPS, GLONASS, Galileo, and BeiDou systems simultaneously to maximize the number of satellites in the sky and prevent signal loss.

• Built-in Industrial Compass: The high-precision magnetometer within the module is optimized for external mounting to prevent magnetic interference from affecting the flight controller (FC).

• SIYI Ecosystem and Pixhawk Compatibility: Fully compatible with SIYI's MK15, HM30, and FM30 systems, and can also be directly connected to all Pixhawk (V5+, V6X, Cube Orange) autopilots with its standard JST-GH 6-pin connector.

Technical Specification Table

Application Areas

• Precision Agricultural Spraying: Centimeter-level tracking of spraying routes.

• Autonomous Mapping and LiDAR: Collecting high-quality photogrammetry data.

• VTOL Automatic Landing: Safe landing in confined areas or on moving platforms.

• Border Security and Surveillance: Long-term autonomous patrol missions.
